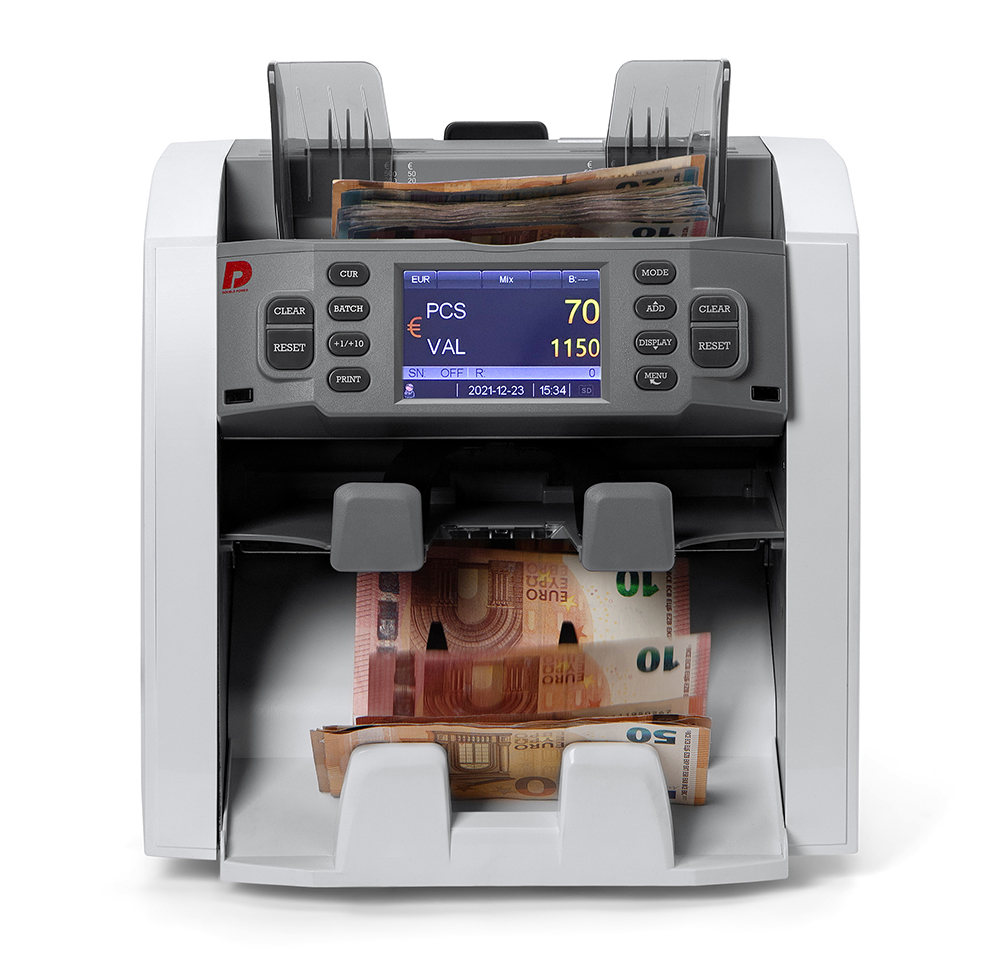

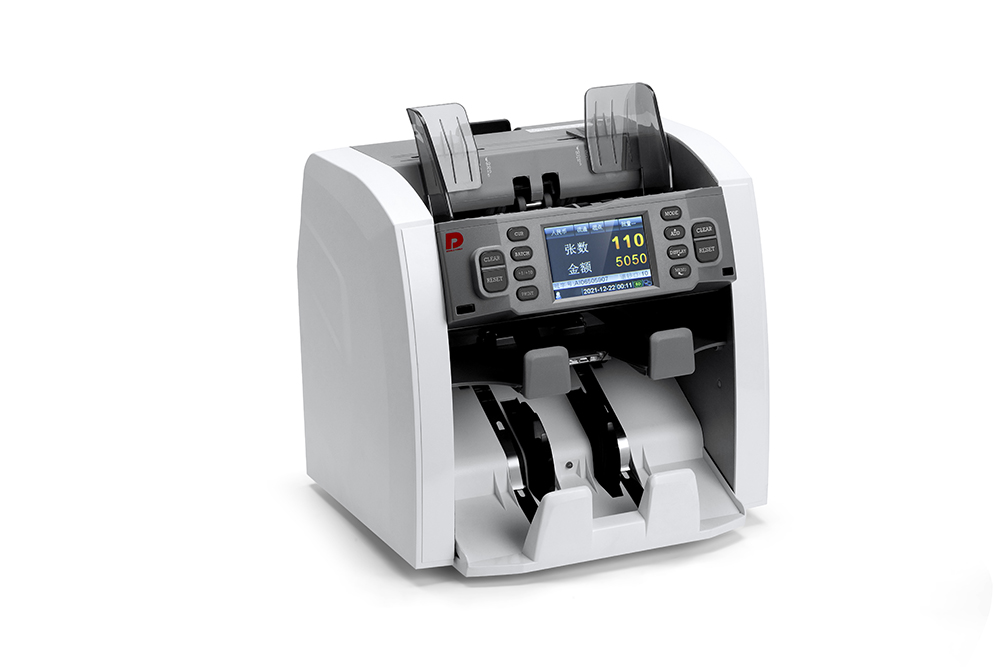

1. Accurate, reliable one and a half pocket multicurrency banknote counter with sorting function.
2. Automatic currency and denomination recognition.
3. Add function, and batch counting.
4. Suspect banknotes are sorted out to the reject pocket and will not be counted.
5. Value counting function for sorted or mixed denomination banknotes.
6. Report function for detailed counting result.
7. Serial number and counting results can be printed instantly on external thermo printer.
8. Access to note transport path, easy to clean and maintain.
9. Software can be updated via SD card or via USB connection.
DP-8122 | DP-8128 | DP-8130 | |
Sensor | Dual CIS, MG, IR, UV | Dual CIS, MG, IR, UV, Optical Thickness | Dual CIS, MG, IR, UV, Mechanical Thickness |
Free Count Speed | 1200 notes/min | 1200 notes/min | 1200 notes/min |
Value Count Speed | 900 notes/min | 900 notes/min | 900 notes/min |
S/N Reading Speed | 800 notes/min | 800 notes/min | 800 notes/min |
Fitness sorting Speed | N/A | 800 notes/min | 800 notes/min |
Hopper Capacity | 500 notes | ||
Stacker Capacity | 200 notes | ||
Reject Pocket | 50 notes | ||

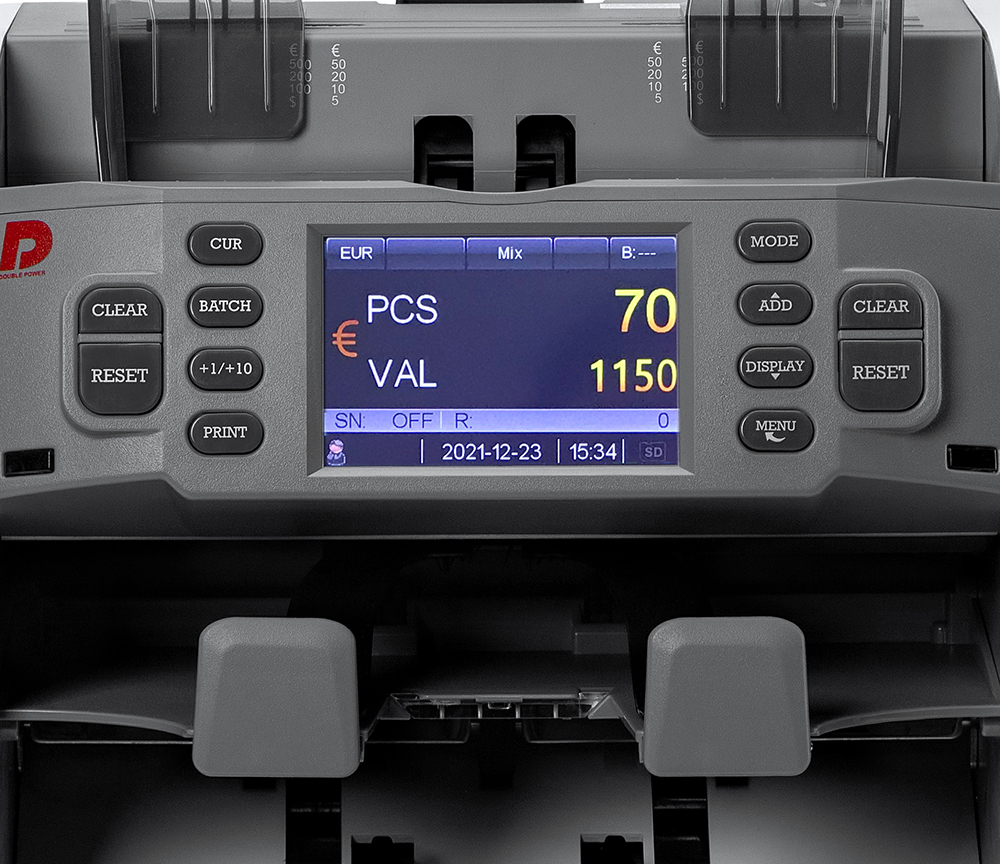

Display | 3.5'' Touch Display | ||
Dimensions | 271(W)X264(H)X260(D) mm | ||
Weight | 8.7 kg | 8.7 kg | 9.9 kg |
Power Supply | AC 100 V-240 V, 50/60 Hz | ||

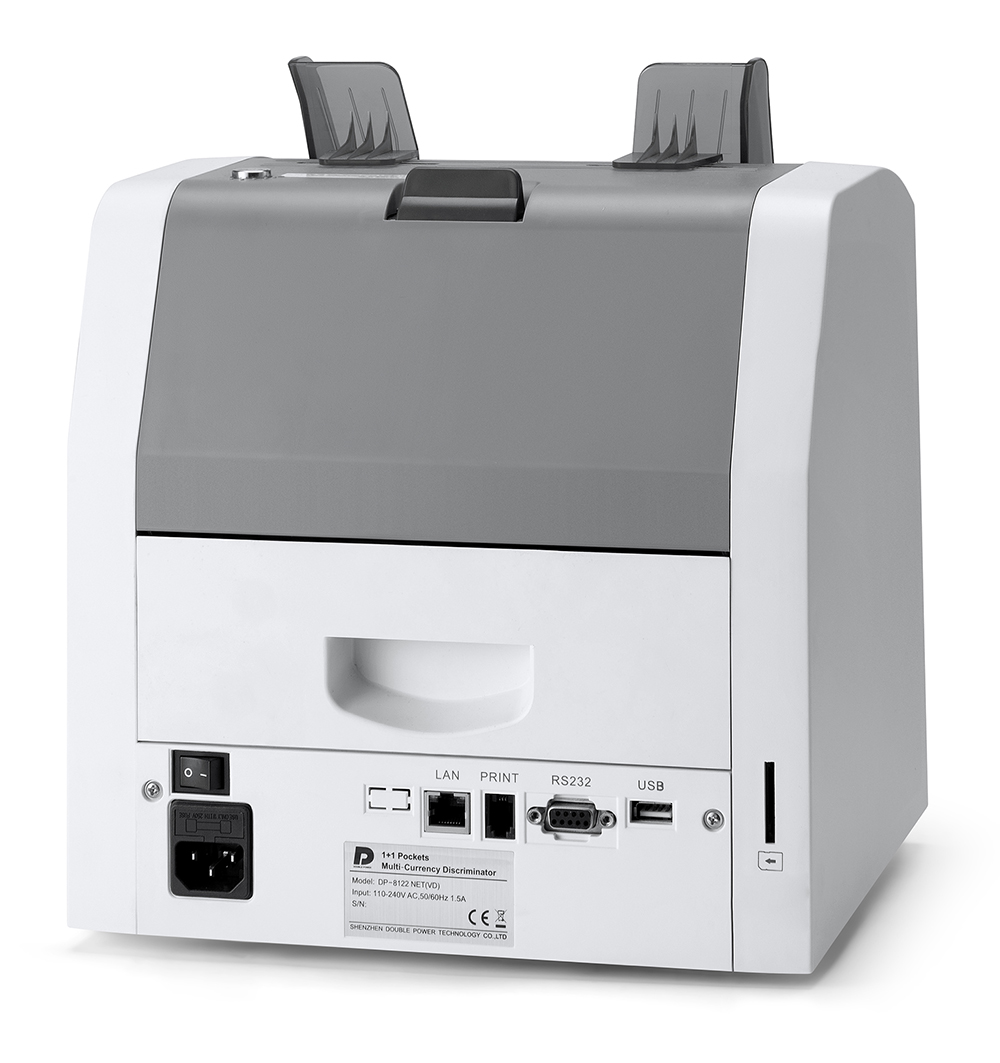

Interface | RJ9, DB9(RS-232), USB, SD card Slot, LAN (Option) | ||
